1、 Transceiver module
Receiving module

Transmission module


2、 Scheme specific parameters
Data transmission from I2S to I2S
The distance is about 30 meters (linear distance is about 50 meters)
Sampling rate: 48K 24bit
Transmission bandwidth 2M
Delay: 5.6 mS (I2S to I2S)
"One transmit multiple receive or two transmit one receive also supports two-way duplex (different software)"
Module power consumption: TX (7dbm) 72mA RX 50mA
Frequency response: 20HZ -- 23KHZ
Used for game earphones/microphones; Speaker (subwoofer, dual channel, three channel); TV headset; Microphone; Anchor sound card; All fields suitable for wireless audio transmission such as wireless musical instruments

3、 Scheme Use

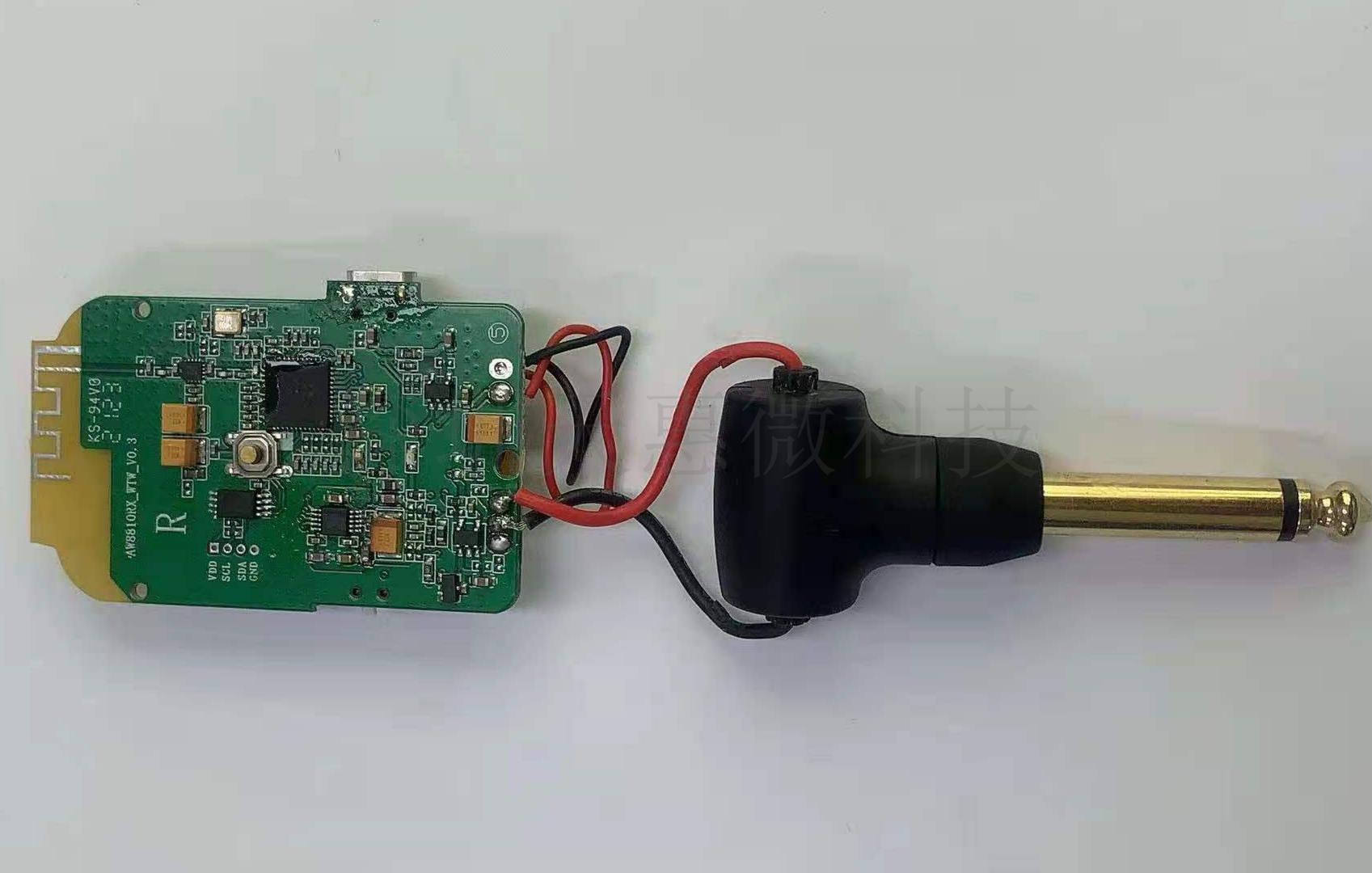

Radio Guitar Radio Guitar Module

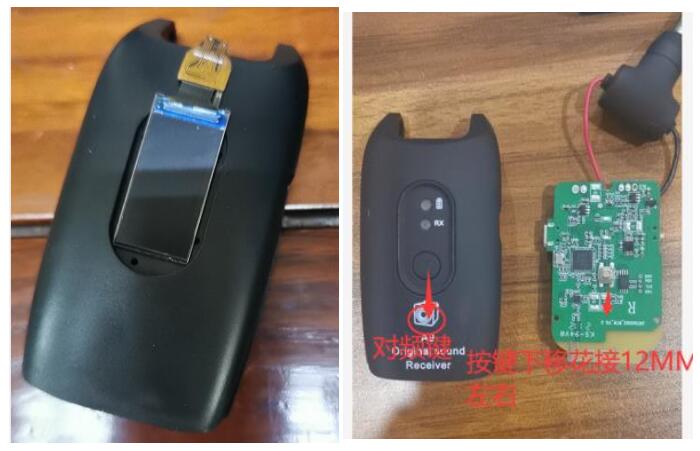

Screen display: vertical display (as shown on the left in the figure above) Move the frequency key down about 12MM
Connect: Press RX/TX simultaneously for 2-3 seconds to connect
Specific operations:
1 TX (Guitar Map) RX (Audio Map), (The icon flashes when not connected, and the icon for successful connection remains on),
2 Battery display (based on the number of cells displayed, the symbol flashes when the battery is low to indicate charging),
3 Signal strength display,
4. Dynamic sound display: Dynamic display as the volume increases or decreases
Bluetooth display: the symbol is on when connected, and not on when not connected
6 CH display, such as CH1 CH2 CH3 CH4 CH5 CH6, press the TX or RX frequency key to automatically search and connect the corresponding channel
7 Charging port: TPYE-C
8 Headset monitoring function is required for both TX and RX, and the headphone jack is shared with TPYE-C
9. Effective transmission distance: 30M (negotiable if not reached at the technical level)
10. Strong anti-interference capability is required, and when multiple sets are used simultaneously, they cannot be used in series or interfere with each other
Please optimize delay, noise, and sound quality to the best
