Live microphone
Live microphone
Live microphone

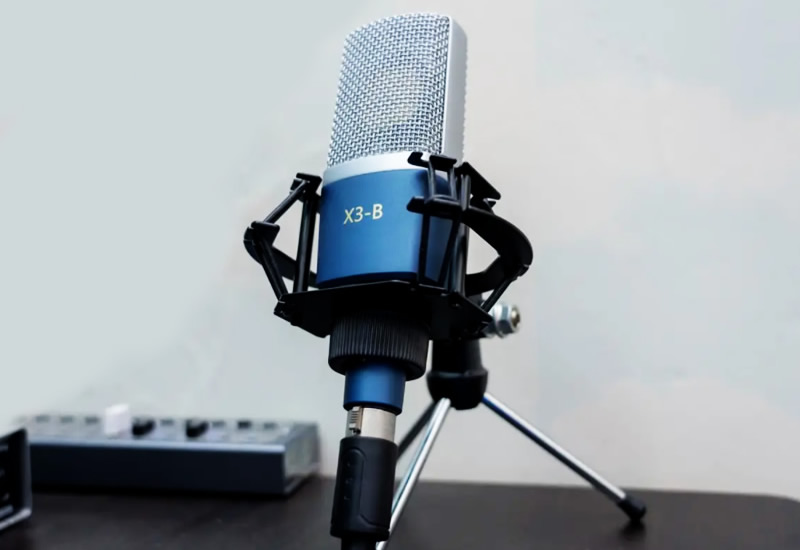

It provides you with the help of a low-power Bluetooth, low-cost design of live microphone solution. It integrates two analog or digital microphones for background noise reduction. The main microphone captures the user's voice, and the secondary microphone is used to capture background noise, such as wind, car sound, distant speech, etc. The noise captured by the secondary microphone is eliminated through the chip ENC technology algorithm to ensure that the user's voice is full, clear There is no sense of distance. The microphone can be used in live broadcast. This scheme has very low power consumption and is easy to produce.

Detailed description
Characteristic
1. Support ENC environmental noise reduction technology;
2. Sensitivity: - 35dB;
3. Support real-time monitoring and playback;
Development Suite
Applicable chip
Chip: AD6976D8
Description: Single/Dual MIC ENC
CPU:32-bit DSP
Memory: Flash 8M
Supported frequency band: Supports ENC&AAC
Supported protocols: Bluetooth 5.1
Sensitivity: - 94dBm
Transmission power: 8dBm
Receiving current: 3.5mA
Transmitting current: 7mA
Package: QFN32 (4mmx4mm)

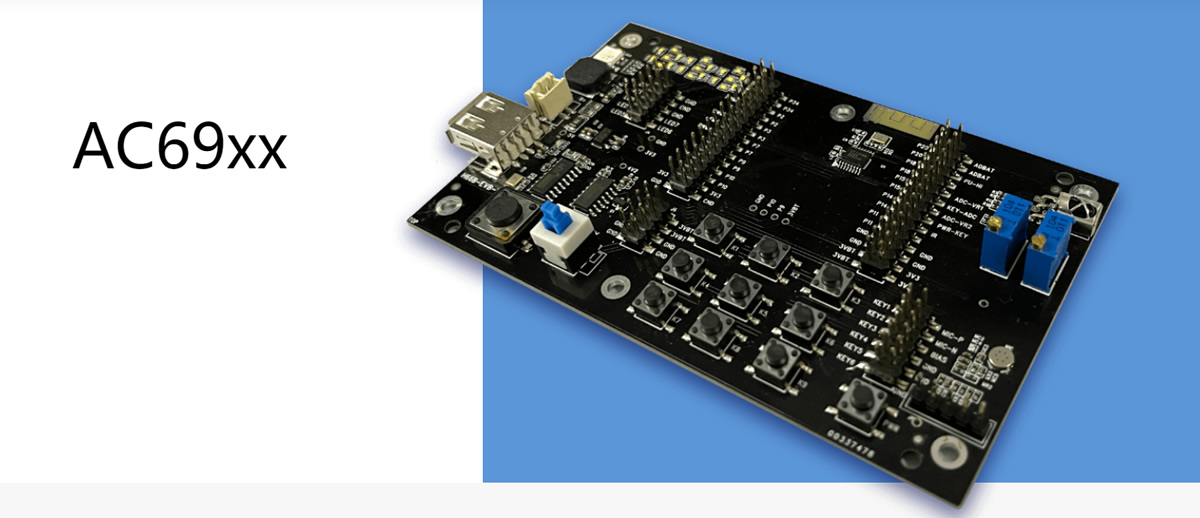

Development kit:
