Atmosphere lamp
Atmosphere lamp
Atmosphere lamp

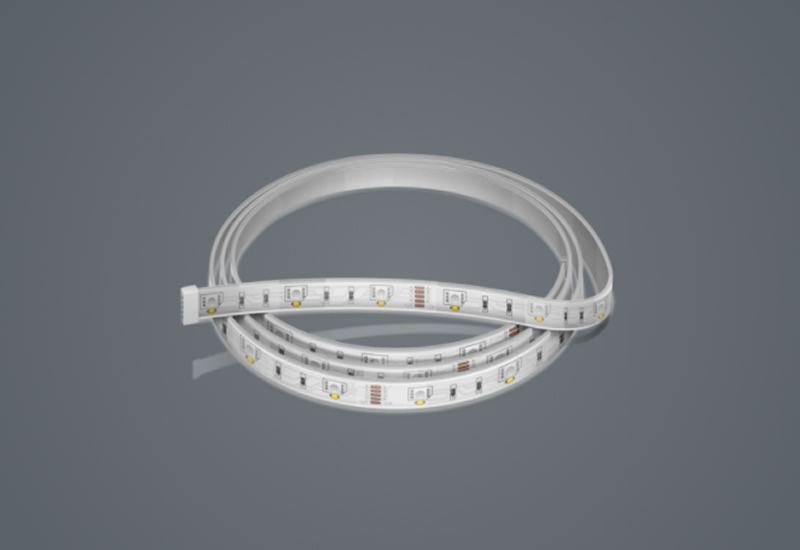

It provides you with the help of a low-power Bluetooth and material saving atmosphere light solution. Through the connection between BLE and APP, you can further control the control light band to achieve color change at will. The color change mode includes flash mode, pulse, rainbow gradient, rainbow flash, etc. After the Bluetooth connection, you can share wireless music with music. This scheme has very low power consumption and is easy to produce.

Detailed description
Characteristic
1. Support BLE, with its own profile: GATT/GAP specification;
2. Fast networking connection, simple configuration, and support APP wireless configuration;
3. Support RGB dimming;
4. Support dual system (Android/iOS) APP operation control
Development Suite
Applicable chip
Chip: ST17H66
Description: Bluetooth 5.2, BLE, Bluetooth Mesh
CPU: High performance low power 32-bit processor
Memory: 64KB SRAM, all programmable retention in sleep mode
Supported frequency band: 2.4 GHz
Supported protocols: Bluetooth 5.2
Sensitivity: -97dBm@BLE 1Mbps data rate
Transmission power: 10dBm
Receiving current: 8mA
Emission current: 8.6mA
Package: TSSOP16
Development kit: ST17Hxx development kit
schematic diagram
