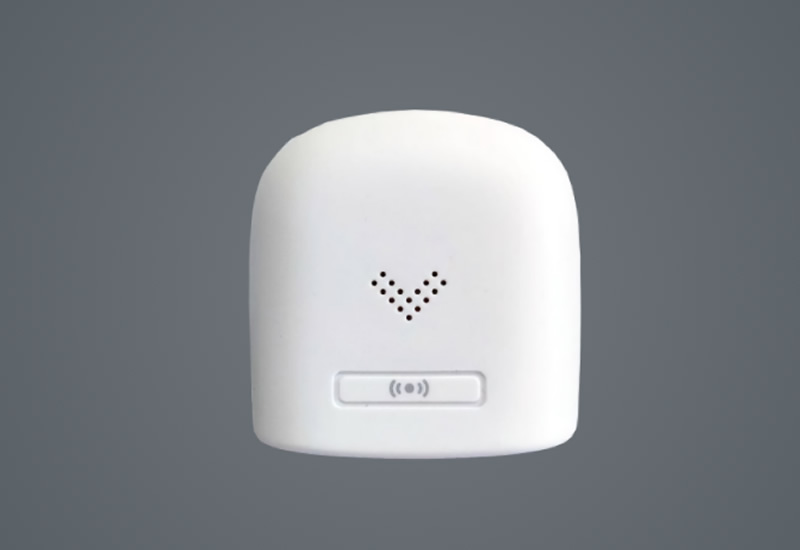

It provides you with a low-power Bluetooth and material saving design limit alarm solution. The smartphone is connected through the Bluetooth wireless stack. The device senses the opening and closing of doors and windows according to the strength of the magnetic field, accurately triggers the linkage, and pushes it to the mobile phone APP. The device and mobile phone APP both sound an alarm and send the alarm. This scheme has very low power consumption and is easy to produce.

Detailed description
Characteristic
1. Ultra low power Bluetooth solution, ultra long standby;
2. Support infrared ranging alarm;
3. Support APP control;
Development Suite
Applicable chip
Chip: ST17H66
Description: Bluetooth 5.2, BLE, Bluetooth Mesh
CPU: High performance low power 32-bit processor
Memory: 64KB SRAM, all programmable retention in sleep mode
Supported frequency band: 2.4 GHz
Supported protocols: Bluetooth 5.2
Sensitivity: -97dBm@BLE 1Mbps data rate
Transmission power: 10dBm
Receiving current: 8mA
Emission current: 8.6mA
Package: TSSOP16
Development kit: ST17Hxx development kit

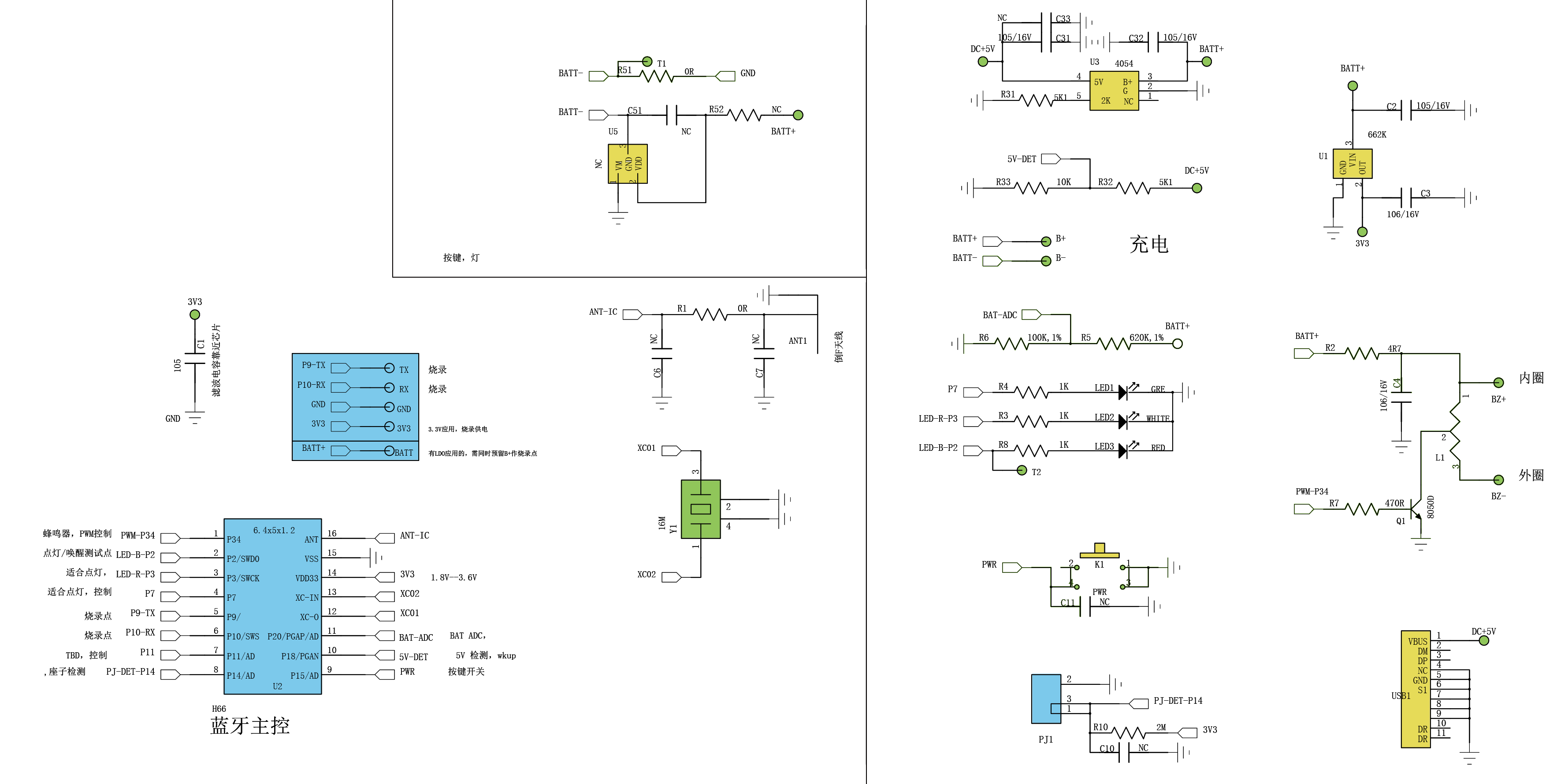

schematic diagram
